Description

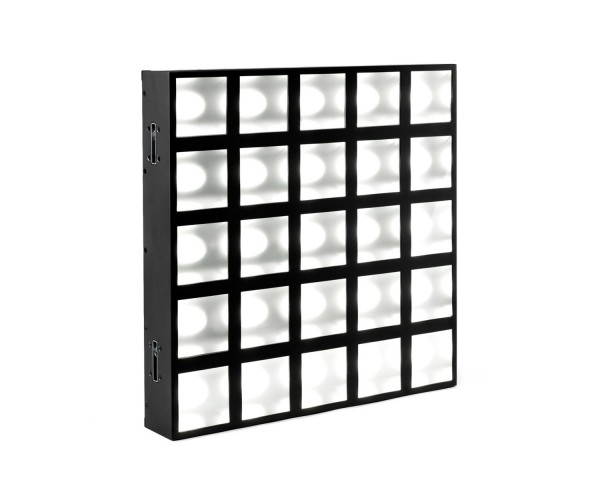

RUSH Strobe 1 5×5 Matrix Panel Strobe/Blinder
- Strobe effect: Electronic, with regular and random pulse, burst and strobe effects
- Pre-programmed effects: Effect, letter and number display macros
- Electronic dimming: 0 – 100% continuous, individually dimmable pixels
- Effects orientation: Standard or inverted 180ø
- Control options: DMX, stand-alone
- DMX channels: 4/25/29
- Stand-alone trigger options: Music trig, auto trig
- Stand-alone sequences: 8 pre-programmed shows or random show
- Stand-alone memory: 20 scenes
- Setting and addressing: Control panel with LCD display
- DMX compliance: USITT DMX512/1990
- Light source: 25 x 5 W Cree cool white LEDs
- Color temperature: 6000 – 6500 K
- Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
- AC power in/thru: Neutrik PowerCon
- DMX data in/out: 3-pin and 5-pin locking XLR
- AC power: 100-240 V nominal, 50/60 Hz
- Typical total power consumption: 148 W
- 110 V, 60 Hz: 2.0 A, 148 W
- 230 V, 50 Hz: 1.2 A, 146 W
- Cooling: Forced air (temperature-regulated, low noise)
- Maximum ambient temperature (Ta max.): 40ø C (104ø F)
- Minimum ambient temperature (Ta min.): 0ø C (32ø F)
- Power cable 1.5 m (4.9 ft.)
- Length: 500 mm (19.7 in.)
- Width: 101 mm (4.0 in.)
- Height: 500 mm (19.7 in.)
- Weight: 9.5 kg (20.9 lbs.)
- Color: Black
- Housing: Steel
- Protection rating: IP20
- Mounting brackets incl. screws
- Location: Indoor use only, must be fastened to surface or structure
- Mounting points: Integral hanging brackets (removable), side-by side mounting locks
- Orientation: Any
This white strobe/blinder is a 5 x 5 LED matrix panel with individually-controllable LEDs. Controllable via multiple DMX options or sound activated, it includes preprogrammed effect, letter and number macros for easy-to-produce graphics and messaging. Panels link via an integrated horizontal and vertical locking mechanism.
